GrovePi C++ library

This library provides the basic functions for using the GrovePi in C++. See more about the GrovePi here: https://www.nuget.org/packages/GrovePi/

To install package:

First of all, you have to cd to ../GrovePi/Software/Cpp

$ tar -xzvf grovepicpp_0.1.1.tar.gz
$ cd grovepicpp_0.1.1
$ sudo dpkg --install ./grovepicpp_0.1.1.deb

The package contains the following sources:

• grovepi.cpp
• grove_dht_pro.cpp
• grove_rgb_lcd.cpp

To uninstall package:

$ sudo dpkg --remove grovepicpp

To compile with package installed:

g++ -Wall [dependencies[,..]].cpp -lgrovepicpp -o [program_name].out// the general format

g++ -Wall grove_relay.cpp -lgrovepicpp -o grove_relay.out // a trivial example

To compile without package:

g++ -Wall grovepi.cpp [dependencies[,..]].cpp -o [program_name].out // the general format

g++ -Wall grovepi.cpp grove_relay.cpp -o grove_relay.out // a trivial example

Then run the executable:

$ ./[program_name].out

---

The basic library functionalities of GrovePi are:

• initGrovePi() : function for initializing communication w/ the GrovePi. It uses the implicit address of 0x04
• initDevice(uint8_t address) : function for initializing communication with a device at a specific address
• delay(milliseconds) : function for delaying given milliseconds
• pinMode(uint8_t pin, uint8_t mode): function for setting a digital/analog port accordingly. mode = INPUT / OUTPUT
• digitalWrite(uint8_t pin, bool value) : function for writing HIGH/LOW values to a digital port
• digitalRead(uint8_t pin) : function for returning the digital value (either HIGH/LOW) read on the given pin
• analogWrite(uint8_t pin, uint8_t value) : function for writing an analog value from 0-255 to a given pin
• analogRead(uint8_t pin) : function for reading the value on a given pin and which returns a value from 0-255
• ultrasonicRead(uint8_t pin) : function for returning the distance in centimeters an ultrasonic sensor reads on a given digital port pin
• setMaxI2CRetries(int _max_i2c_retries) : function for setting the maximum number of retries before quitting current operation - you should not use it
• setGrovePiAddress(uint8_t addr) : change the implicit GrovePi address -> this doesn't change the GrovePi's address (firmware-wise & physically), but it's only setting the address at which GrovePi is reachable - you should not use it
• writeBlock(uint8_t command, uint8_t pin_number, uint8_t opt1 = 0, uint8_t opt2 = 0) : function for issuing a command to the GrovePi. The command is targeting a certain pin. The optional arguments can be anything depending on the command. (for example for analogWriting, we would use opt1 for sending the value we want to write)
• writeByte(uint8_t byte_val) : it only sends a byte to the GrovePi. You can compose the writeBlock function by using multiple calls of this function
• readBlock(uint8_t *data_block) : returns via the pointer the read data from GrovePi. The length of the array is returned by the function
• readByte() : returns a byte from GrovePi

Attention:

• it's currently not supported to use multiple I2C devices with this library, unless you reinitialize communication with the device you want to talk to (w/ initgrovePi() or initDevice(uint8_t address)
• for any of the given functions in this library, if an error occurs on the I2C line, a GrovePi::I2CError() is thrown. GrovePi::I2CError() is derived from std::runtime_error
• the library is included in GrovePi namespace, so don't forget to use the resolution operator or the using command.

How to create a deb package:

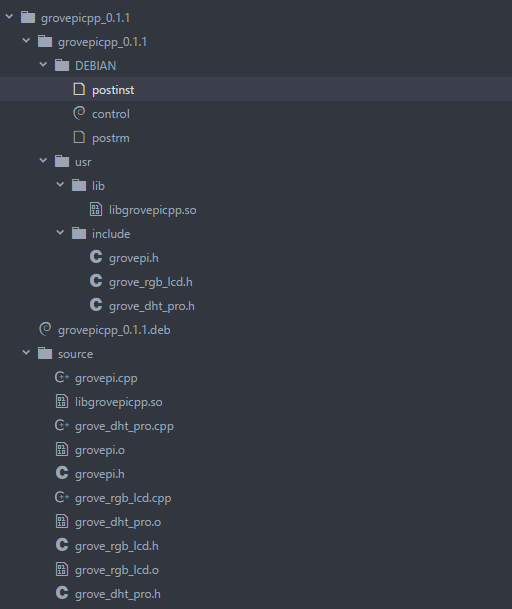

Extract the tar package and cd into its directory. The folders' hierarchy is this.

---

You'll see that in the source folder there are the source files along with the .o object files and .so files (which are the shared libraries).

In order to generate the shared libraries we need to follow the next steps

Step 1

Compile all the .cpp files into position independent code (object files) which are required for creating a shared library:

g++ -C -Wall -Werror -fpic [cppfile]

Run the following command to create a shared library:

g++ -shared -o libshared.so [list of .o files]

The name of the library must have at all times the prefix lib and the suffix .so. The rest of it is the name of the library. This means that this libgrovepicpp.so file name suggests that our library is called grovepicpp.

After we're done with it, we have to copy the shared library to the grovepicpp_x.y.z/usr/lib folder.

---

Step 2

Copy all the header files from the source folder to grovepicpp_x.y.z/usr/include (make sure you clean the include folder).

---

Step 3

Open control file from grovepicpp_x.y.z/DEBIAN/ folder and modify the version accordingly. Let's say we have a version like this: 0.2.1:

1. the first digit represents a major release: like a complete redesign or architecture. It's generally accepted that 0 as a "major release" actually means that the release it's yet to be completed. We'll have it this way as long as we don't have a versioning scheme in all of our repo(s)
2. the second digit represents a new feature added to the current architectural scheme
3. the third digit represents a bug-fix / a really small change / and so on.

Also, please modify all the other folders name according to the version number.

---

Step 4

Go at the directory level where you can see the 2 main folders: grovepicpp_x.y.z & source. We need to create the actual package and and we'll type:

dpkg-deb --build grovepicpp_x.y.z/

---

Step 5

cd out of that folder and archive the folder (with its all files) with the command:

tar -csvf grovepicpp_x.y.z.tar.gz grovepicpp_x.y.z/

---

Voilà! You now have a package ready to be delivered.
